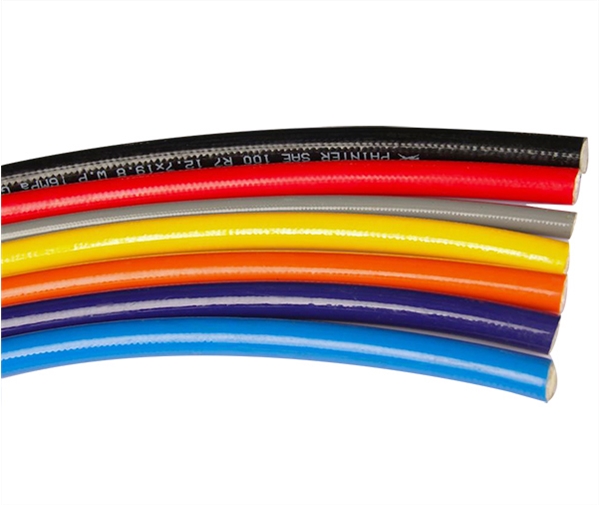

珠海派特爾 - 樹脂管系列
首頁 - 產品中心 - 珠海派特爾
一層纖維編織樹脂管部分規格參數
| 軟管尺寸 |
內徑×外徑 (I.D×O.D) |
額定工作壓力W.P | 最小爆破壓力B.P | 最小彎曲半徑 | 參考重量 | 內外徑允許公差 | ||||
| INCH | DASH | DN | Bar | Psi | Bar | Psi | ||||
| 1/12" | 01 | 2 | 2×5 | 300 | 4350 | 1200 | 17400 | 30 | 23 | ±0.1 |
| 1/8" | 02 | 3 | 3×7 | 300 | 4350 | 1200 | 17400 | 35 | 30 | ±0.1 |
| 1/8" | 02 | 3.5 | 3.5×8.4 | 230 | 3330 | 920 | 13340 | 35 | 55 | ±0.1 |
| 5/32" | 2.5 | 4 | 4×9 | 210 | 3045 | 840 | 12180 | 35 | 60 | ±0.1 |
| 5/32" | 2.5 | 4 | 4×10 | 250 | 3625 | 1000 | 14500 | 35 | 80 | ±0.1 |
| 5/32" | 2.5 | 4 | 4×8.2 | 210 | 3045 | 840 | 12180 | 35 | 50 | ±0.1 |
| 5/32" | 2.5 | 4.2 | 4.2×8.6 | 210 | 3045 | 840 | 12180 | 35 | 50 | ±0.1 |
| 5/32" | 2.5 | 4.2 | 4.2×8.9 | 210 | 3045 | 840 | 12180 | 35 | 55 | ±0.1 |
| 3/16" | 03 | 4.8 | 4.8×10.3 | 210 | 3045 | 840 | 12180 | 35 | 65 | ±0.1 |
| 1/4" | 04 | 6 | 6.3×11.7 | 200 | 2900 | 800 | 11600 | 50 | 80 | ±0.1 |
| 1/4" | 04 | 6 | 6.3×12.7 | 225 | 3260 | 900 | 13050 | 50 | 105 | ±0.1 |
| 5/16" | 05 | 8 | 7.9×14.3 | 190 | 2755 | 760 | 11020 | 50 | 125 | ±0.1 |
| 3/8" | 06 | 10 | 9.5×15.9 | 175 | 2540 | 700 | 10150 | 80 | 140 | ±0.1 |
| 1/2" | 08 | 13 | 12.7×19.8 | 140 | 2030 | 560 | 8120 | 100 | 200 | ±0.1 |
兩層纖維編織樹脂管部分規格參數
| 軟管尺寸 |
內徑×外徑 (I.D×O.D) |
額定工作壓力W.P | 最小爆破壓力B.P | 最小彎曲半徑 | 參考重量 | 內外徑允許公差 | ||||
| INCH | DASH | DN | Bar | Psi | Bar | Psi | ||||
| 3/16" | 03 | 4.8 | 4.8×10.3 | 250 | 3620 | 1000 | 14500 | 55 | 70 | ±0.1 |
| 1/4" | 04 | 6 | 6.3×12.7 | 250 | 3620 | 1000 | 14500 | 75 | 110 | ±0.1 |
| 1/4" | 04 | 6 | 6.3×13.3 | 275 | 3980 | 1100 | 15950 | 75 | 125 | ±0.1 |
| 5/16" | 05 | 8 | 7.9×15 | 260 | 3770 | 1050 | 15230 | 85 | 150 | ±0.1 |
| 3/8" | 06 | 10 | 9.5×18 | 250 | 3620 | 1000 | 14500 | 100 | 210 | ±0.1 |
| 1/2" | 08 | 13 | 12.7×19.8 | 160 | 2320 | 640 | 9280 | 140 | 260 | ±0.15 |
| 1/2" | 08 | 13 | 12.7×21.6 | 210 | 3040 | 840 | 12180 | 140 | 260 | ±0.15 |
| 5/8" | 10 | 16 | 15.9×23.6 | 160 | 2320 | 640 | 9280 | 165 | 295 | ±0.15 |
| 3/4" | 12 | 19 | 18.9×26.4 | 140 | 2030 | 560 | 8120 | 195 | 315 | ±0.2 |
| 1" | 16 | 25 | 25.4×34 | 105 | 1520 | 420 | 6090 | 256 | 450 | ±0.2 |
